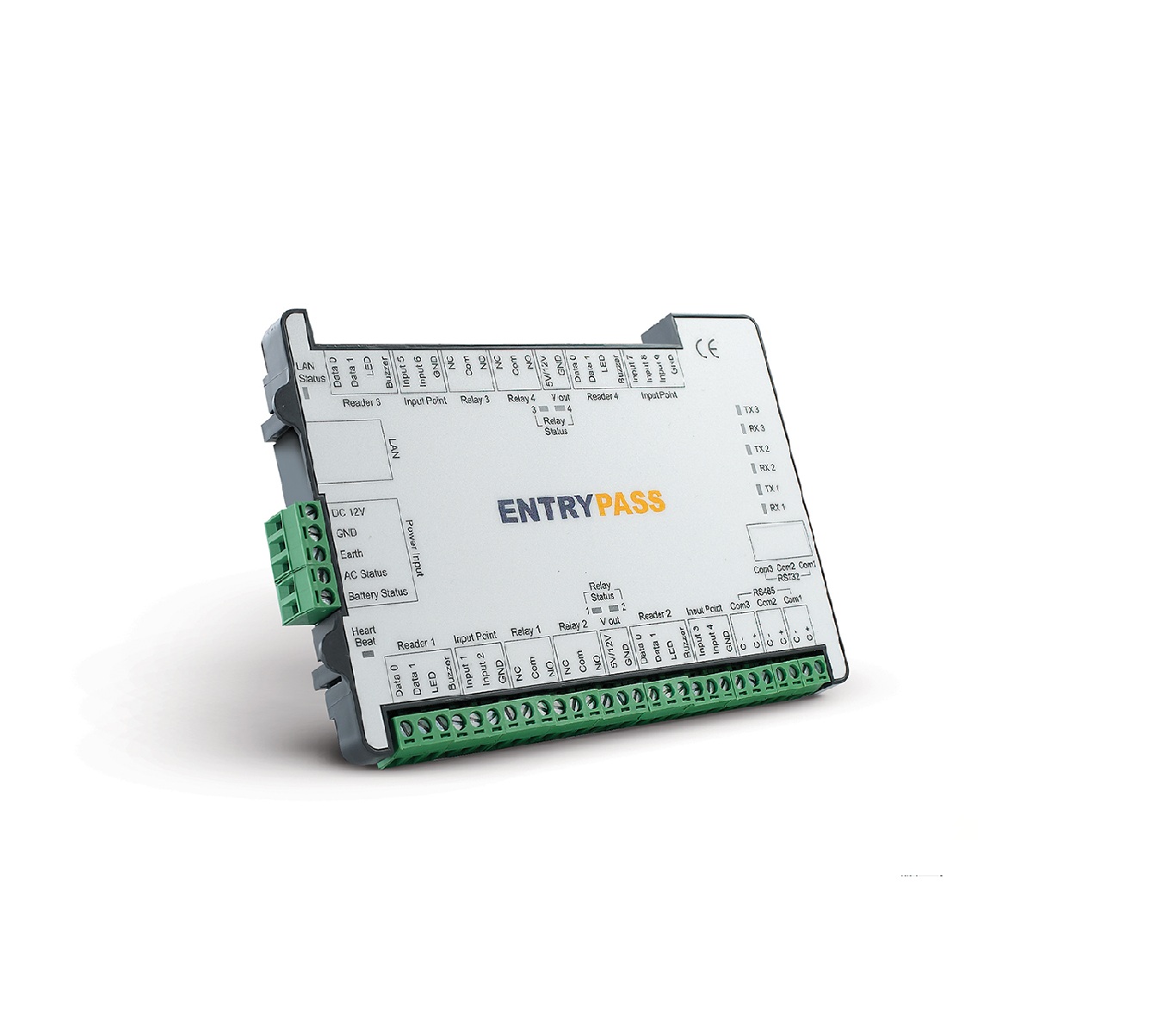

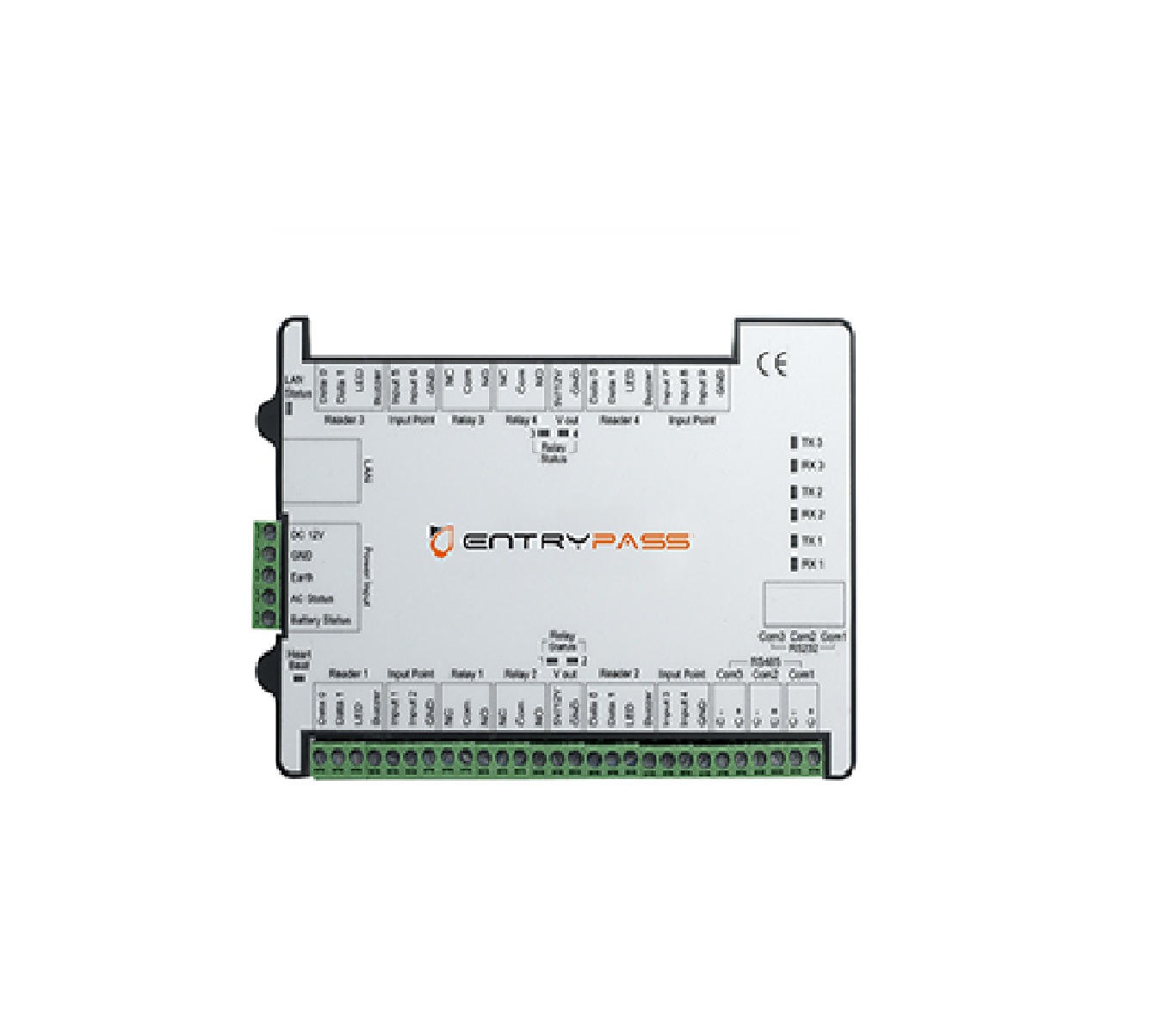

Bộ điều khiển kiểm soát cửa EP.S3150

prev next Bộ điều khiển kiểm soát cửa EP.S3150

  • Serial :  ASE001209
  • Hãng sản xuất:  Entrypass
  • Hàng trong kho:  Còn hàng
  • Giá :  Liên Hệ
  • Lượt truy cập: 3564
  • Số tiền để mua (Cho một sản phẩm):
  • Số lượng:
Từ Khóa:



Mô tả hàng hoá

Sản phẩm khác

Bài viết liên quan

Đánh giá

Hướng dẫn mua hàng

Bản đồ



- EntryPass serial Communicators cho phép truyền thông tin giữa các máy tính hoặc giữa các máy tính và các thiết bị ngoại vi một lúc trên một dòng, đồng bộ hoặc không đồng bộ.
- Phạm vi của các thiết bị Giao tiếp Nối tiếp của chúng tôi thay đổi từ bộ điều khiển tích hợp với đầu đọc tích hợp đến bảng điều khiển 4 đầu đọc nâng cao và thậm chí cả bảng điều khiển đầu vào / đầu ra lai để phù hợp với nhu cầu và yêu cầu cụ thể của bạn.

DOOR INTERLOCKING
2 In doors interlocking within the control panel, no external wiring is needed. Cross-board interlocking is achievable by acquiring the interlocking signal coming from second control panel before granting the accessibility to the local controller.

DYNAMIC STORAGE ALLOCATION (DSA)
3 onboard RS-232 / RS-485 user configurable serial communication ports for server communication and 3rd party integration purposes.

HIGH PERFORMANCE
Based on the latest HCB (Hybrid Compact Board), S3100 is a high reliability, high efficiency and highly integrated intelligent multi-application control panel targeted for physical access control industry. It features a 32bits Freescale ColdFire microcontroller running at 60MHz, this control panel can fulfill most demanding requirement in physical access control environment.

Feature Highlight
Firmware upgrade via server
Reader Output Control
AC Fail Monitoring
Battery Monitoring
Support 5,000 Users And 10,000 Event MemorySupport Single / 2-In doors
Support Car Park Mode
Compatible with various reader technologies
RS-485 / RS-232 communication ports
Configurable Digital / Supervised inputs (4)
Quick terminal plug-in connectors

HARDWARE DESCRIPTION
MCU 32bits @ 60MHz
Memory 256K Flash Memory
32K SRAM (Buffer)
32Mbits Non-Volatile SPI Flash Memory (Storage)
Card holder 5,000
Event Transaction 10,000
Digital/Supervise Inputs Max. 4, User configurable
(Door Sensor/Request-To-Exit/Fire Input/General Purpose)
Digital Output Max. 2 Dry contact Relay
Onboard Real Time Clock Yes
Serial Communication Port RS232/RS485 User Configurable
Power Protection Resettable Fuse - 2.5A
Surge Protection TVS - Up to 15KVA
Onboard LED Control Power / Communication / Event / Error
Onboard Buzzer 1
AC Fail Monitoring Yes
Battery Monitoring Yes (Firmware threshold control to shutdown control panel)
External Short Circuit Protection At readers
Backup Battery Yes, Apply to RTC only
